PRODUCTS
Waqua Co., Ltd.

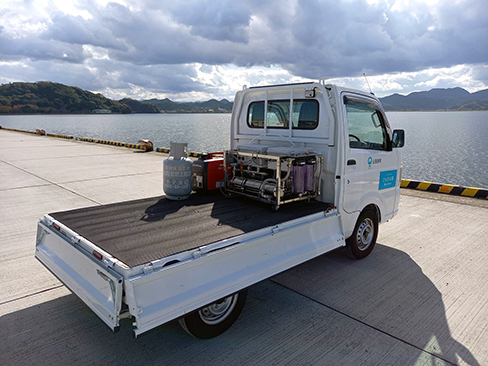

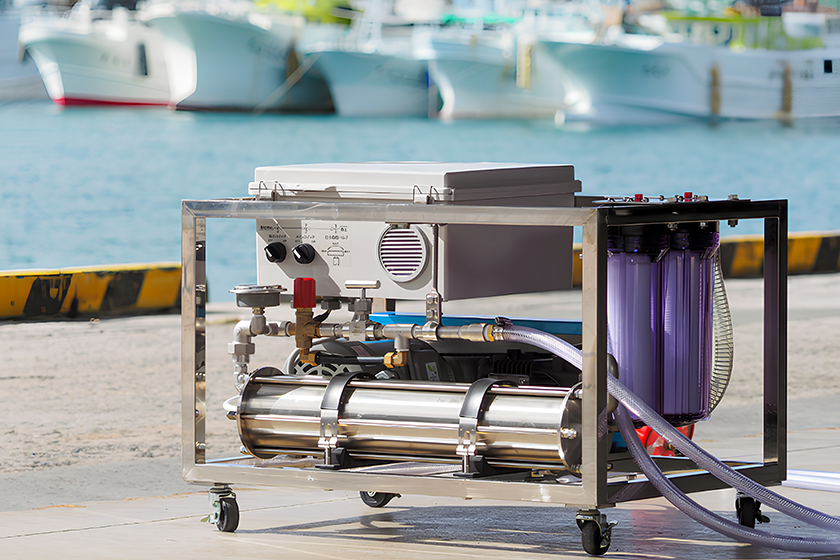

Small seawater desalination equipment
MYZ®E-60/250
Turning seawater into fresh water with the world's smallest technology
The MYZ®E-60/250 is a small, compact desalination unit that can produce fresh water on-site from oceans and rivers. In combination with the PT-1 pretreatment unit, it can be used at construction sites, small boats, commercial facilities, campsites, and other locations, and can also contribute to ensuring drinking water and water for daily use in emergencies.
Features
- Uses a proprietary, patented reverse osmosis (RO) containment vessel
- The MYZ®E-60 is the world's smallest and lightest compact design
- Registered with the Ministry of Land, Infrastructure, Transport and Tourism's New Technology Information System "NETIS"
- Able to remove 99.2% to 99.8% of chloride ions (salt)
- The water purification ratio is approximately 30% when using seawater (approximately 70% is discharged).
When using freshwater, the water purification ratio is approximately 60% (approximately 40% is discharged).
Technical name: Small seawater desalination equipment
NETIS registration number: QS-190054-VE
Uses/Usage Scenes
- Construction site
Secure water for daily use, such as for toilets, washing hands, and cleaning equipment. - Small vessel
Ensuring drinking water and water for daily use on fishing boats, etc. - Commercial facilities
Ensuring water for daily use in hotels on remote islands that do not have water facilities - Disaster prevention related (local government)
Securing water for daily life until infrastructure is restored in the event of a disaster
Small seawater desalination equipment Product Specifications

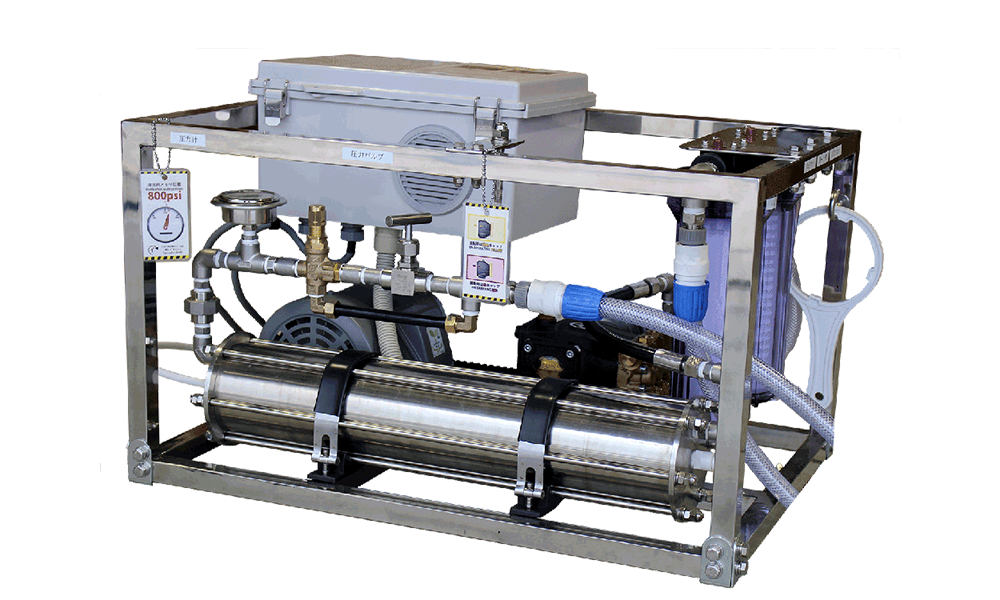

Small seawater desalination equipment MYZ® E-60
| Frame size | 700mm wide x 500mm deep x 520mm high | |
|---|---|---|
| Weight | Approximately 58kg | |
| Water production amount | Sea water | Approximately 50-60L/h |
| Fresh water | Approximately 100-120L/h | |
| Operating voltage | Single-phase 100V | |
| Rated Power | Sea water | 1,370w (main unit + recommended pump) |
| 735w (main unit only) | ||
| Fresh water | 1,140w (main unit + recommended pump) | |
| 380w (main unit only) | ||

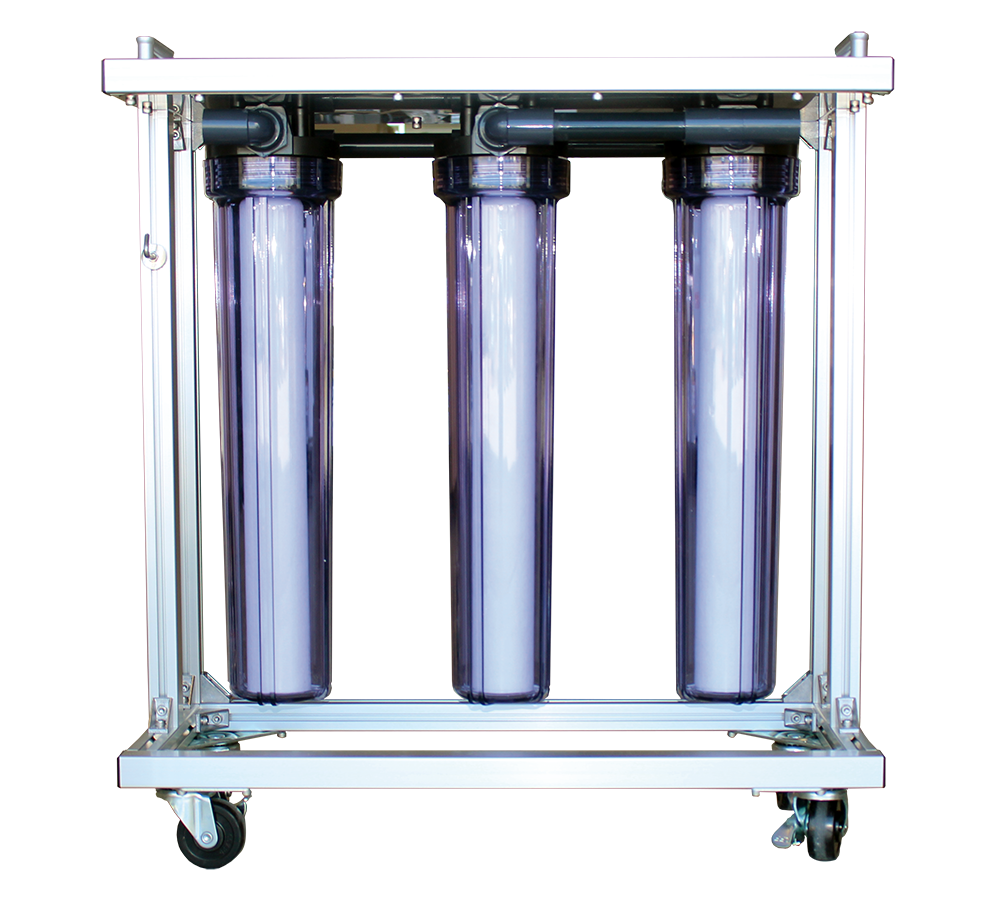

Pretreatment Unit PT-1
| Frame size | 700mm wide x 300mm deep x 780mm high |
|---|---|
| Weight | Approximately 20kg |
| Filter 20 inch |
2 x 5μ sediment filters 1 x 0.5μ sediment filter |
*Sediment filter (for bulky waste)
*RO membrane (reverse osmosis membrane) and case
*Pump oil (replace every 500 hours)
Please contact us for other replacement parts.

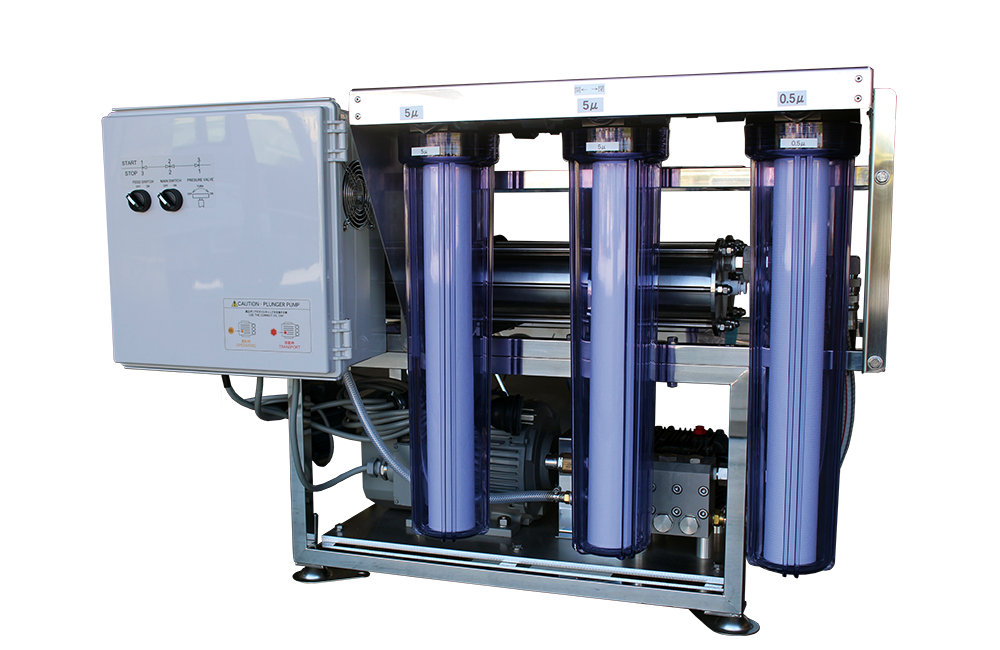

Small seawater desalination equipment MYZ® E-250
| Frame size | 1,020mm wide x 584mm deep x 722mm high | |
|---|---|---|
| Weight | Approximately 115kg | |
| Water production amount | Sea water | Approximately 230-250L/h |
| Fresh water | Approximately 460-500L/h | |
| Operating voltage | Single or three-phase 200V | |
| Rated Power | Sea water | 3,810w (main unit + recommended pump) |
| 3,360w (main unit only) | ||
| Fresh water | 1,990w (main unit + recommended pump) | |
| 1,540w (main unit only) | ||

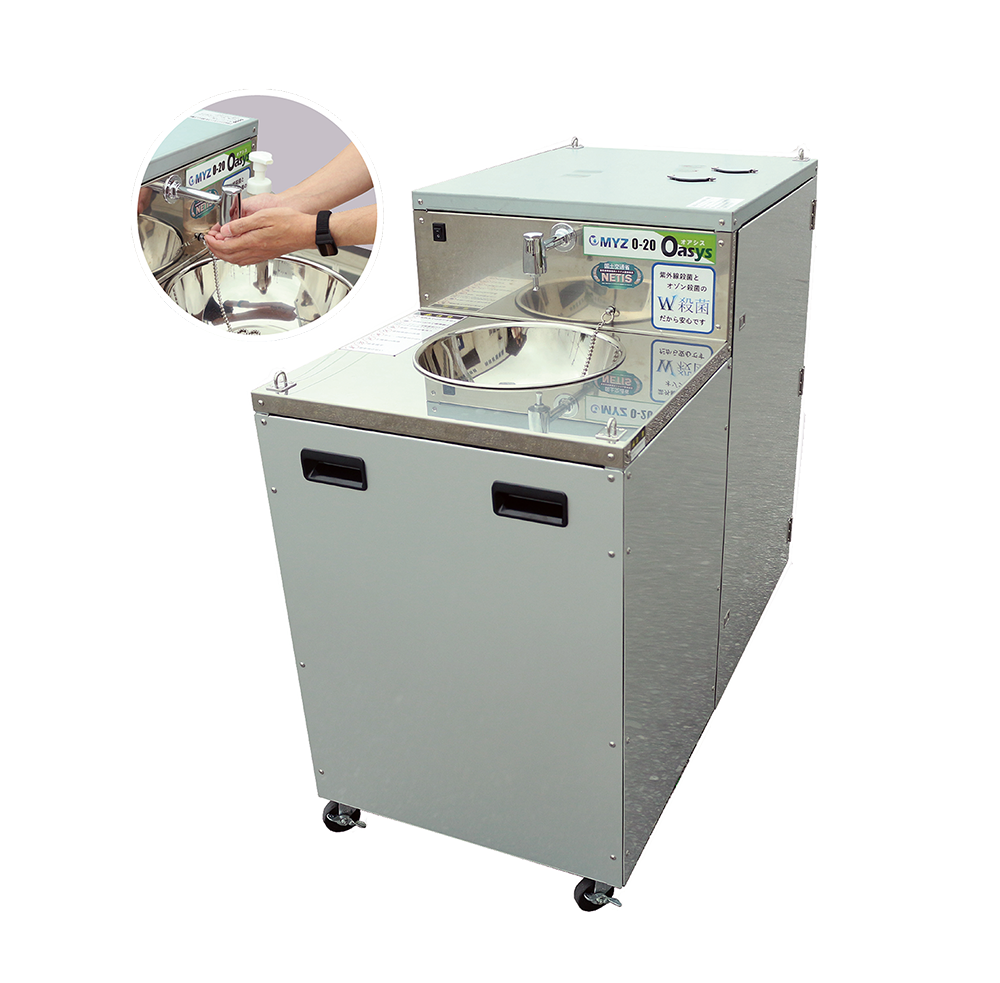

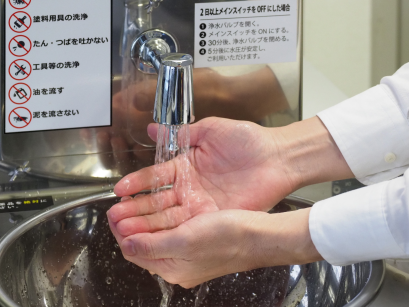

Circulating hand washing unit MYZ Oasys®
Features
- Circulating hand washing unit that purifies water for repeated use
- No construction required, can be used with 100V household power
- One water supply will eliminate the need for water changes for approximately one month, greatly reducing the effort required for water supply
- Registered with the Ministry of Land, Infrastructure, Transport and Tourism's NETIS
- Contributing to environmental improvement at construction sites, etc.
*Cannot be used as drinking water.
| Frame size | 560mm wide x 1,137mm deep x 1,030mm high |
|---|---|
| Weight | Approximately 95kg (dry weight) |
| Operating voltage | AC100V 50Hz/60Hz |
| Power consumption | 239W |

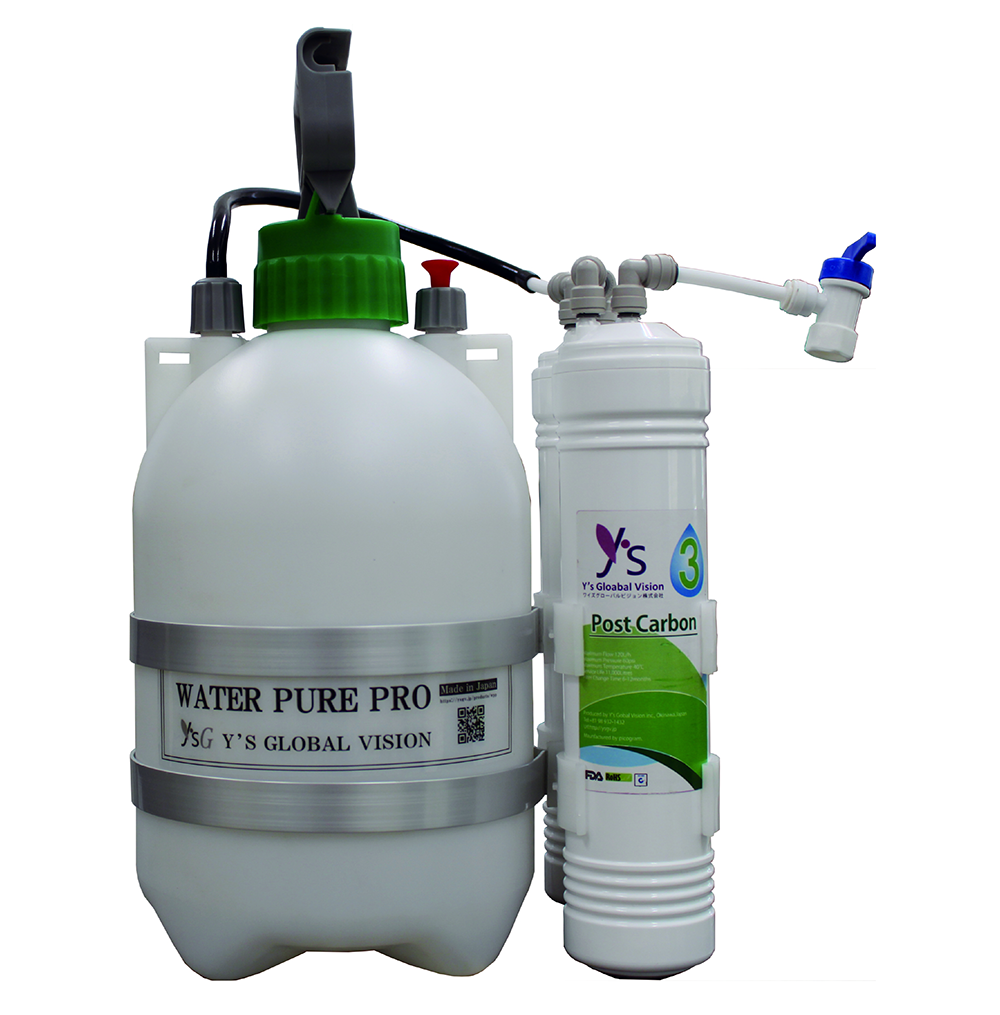

Manual water purifier Water Pure Pro / Water Pure
Features
- A manual pump water purifier that does not require electricity and can purify water from rivers and ponds
- Removes harmful substances such as E. coli and heavy precious metals
- Water Pure Pro can supply enough water for 100 people per day (300L) for over a month
- Products supported by the Tokyo Metropolitan Small and Medium Enterprise Support Center Market Support Project
Purpose
- Ensuring drinking water for outdoor activities, overseas travel, disasters, emergencies, etc.
| Water Pure Pro *Photo above | |
|---|---|
| Frame size | 280mm wide x 200mm deep x 400mm high |
| Weight | Approximately 2kg |
If you have any other questions, please feel free to contact us.
